heavy duty gypsum board manufacturing plant and turnkey service (11 years' golden supplier)

FOB Reference Price:Get Latest Price
US $2,350,000-2,850,000 / Set | 1 Set/Sets single machine available (Min. Order)
Supply Ability:
12 Set/Sets per Year 11 years' golden supplier + working plants
Port:
Tianjin
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
plasterboard
Automatic Grade:
Automatic
Production Capacity:
20 million sqm per year
Place of Origin:
Hebei, China (Mainland)
Brand Name:
LVJOE
Model Number:
LVGB-20M
Voltage:
380V/50HZ
Power(W):
~1250kw
Dimension(L*W*H):
215 x 85 x 8.5m
Weight:
520t
Features:
less cost, durable equipment
Certification:
ISO9001, SGS, CE, BV
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
capacity:
3000 m2 per hour
our factory:
golden supplier for 11 years, no problem machinery
board quality:
meet internation standard
flowmeter & pump:
made in Germany
burner:
ECLIPSE
control:
touch screen
dryer:
direct heat
mixer & forming:
no need people
electrical:
whole set Siemens
NEW machinery:
decorative gypsum sheet
Packaging & Delivery
Packaging Details
1. suitable for long distance transportation
2. small parts and electrical in carton/wooden/steel boxes
3. some parts suitable for flat rack
Delivery Time
within 180 days
Product Description

Characteristics of our gypsum board production line


• Paper edge groove impressing device instead of motor driving saws, energy saving, less maintenance and clean;
• Dynamic foam generating system;
• Wet additives like retarder, silicon oil and water reducing agent all with independent system;
• Altogether 4 powder additives configured with metering feeding devices, ensuring accurate dosing and high potential and flexible technology development;
• Overflow of plaster to weighing belt conveyor and its material internal circulating loop makes the belt filling consistent;
• Double screw powder mixer to make plaster and additive homogeneous;
• Most updated German style mixer with dense plaster extraction and foam injection holes; motor driving with frequency inverter;
• Dryer door, dryer drive and distributional bridge of German technology The extruder for board forming with motor driven thickness adjustment;
• Dryer with frequency inverters for the circulation fan motors and automatic central lubrication for chain wheel;
• Knife controlled by servo motor;
• 2 zone longitudinal dryer with:
o Moisture discharge from zone 1 to zone 2 to save thermal energy;
o Humidity control with humidity detector, to let the dryer running at stable state and to acquire consistent board quality;
o Heating system: hot air technology (no oil pipes inside dryer, via heat exchanger);
• Electric control system of famous brand;

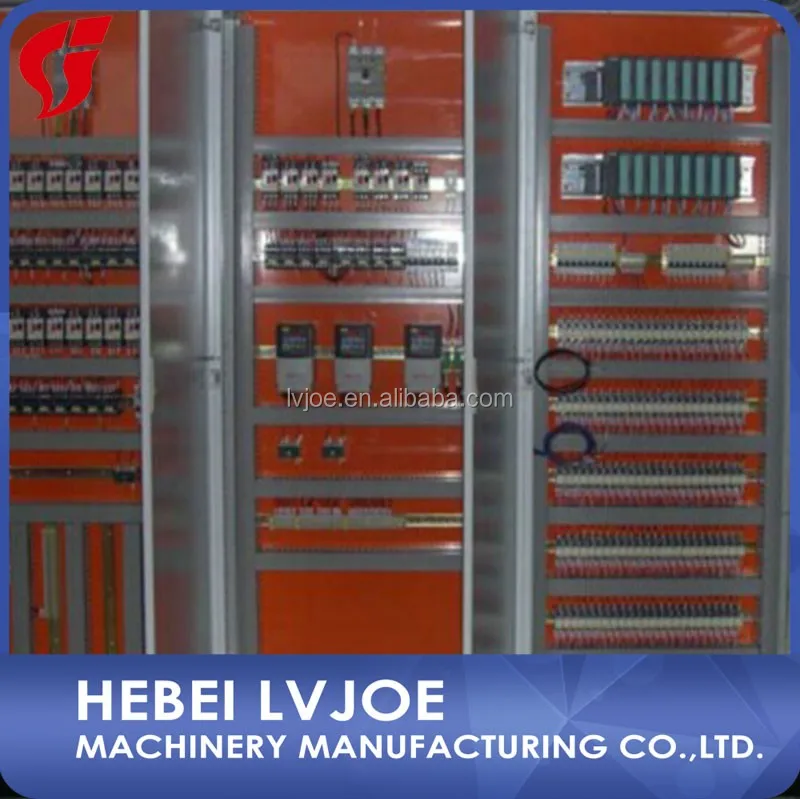

• Electrical control panel and PLC: Siemens S7 series;
• Fully automatic control;
• With whole set lab. Equipment

Dosing system

Powder raw materials + liquid raw materials mixed together for getting slurry.
Name
Brand
Function
Note
Motor
SEW
Gear motor also SEW
Flow meter
Germany brand
raw materials scale
Pump
NETZSCH
One use, one spare
Our company
Detailed Images

Machine Parts

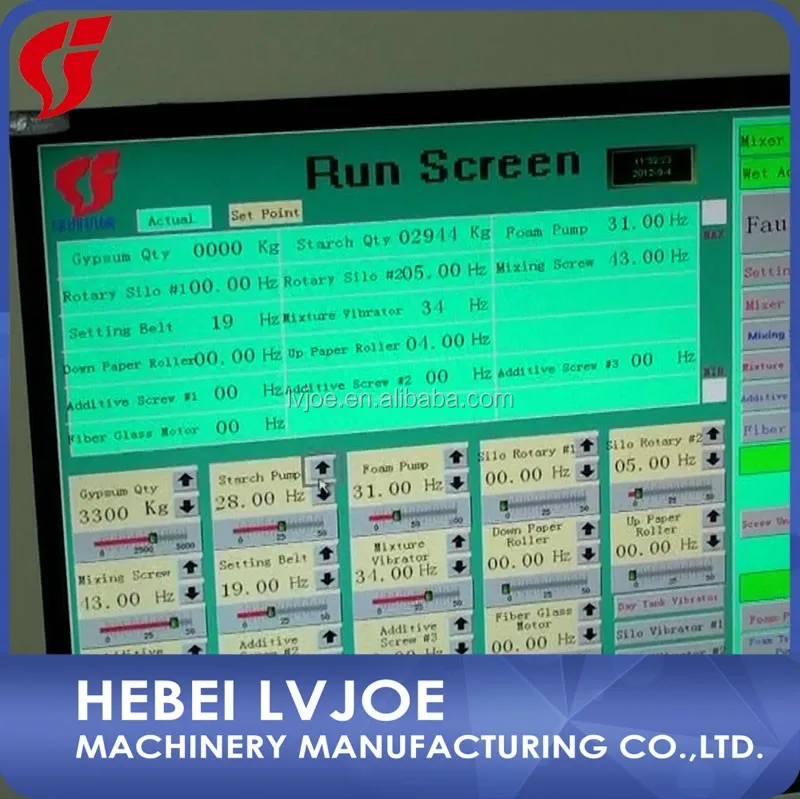

Name: Touch screen

Brand: LVJOE

Feature:

Easy operation;

High precision;

Collect data   etc.

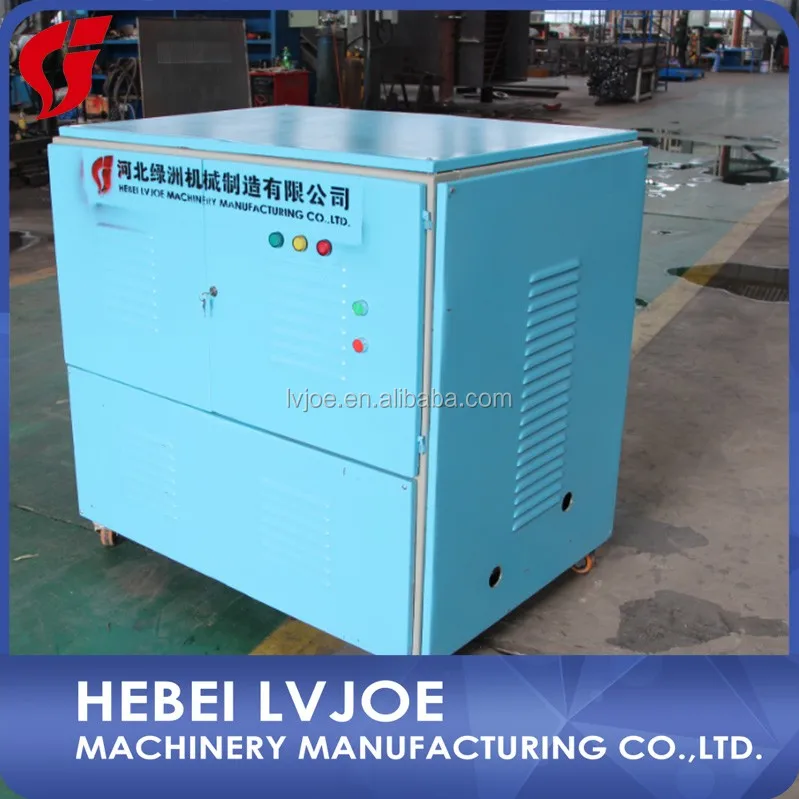

Name: Dynamic foaming
Brand: LVJOE2016
Features:
Similar Europe technology;

Evenly & small bubble;

Light weight board, but more strong;

Saving raw materials cost etc.

Machine Parts

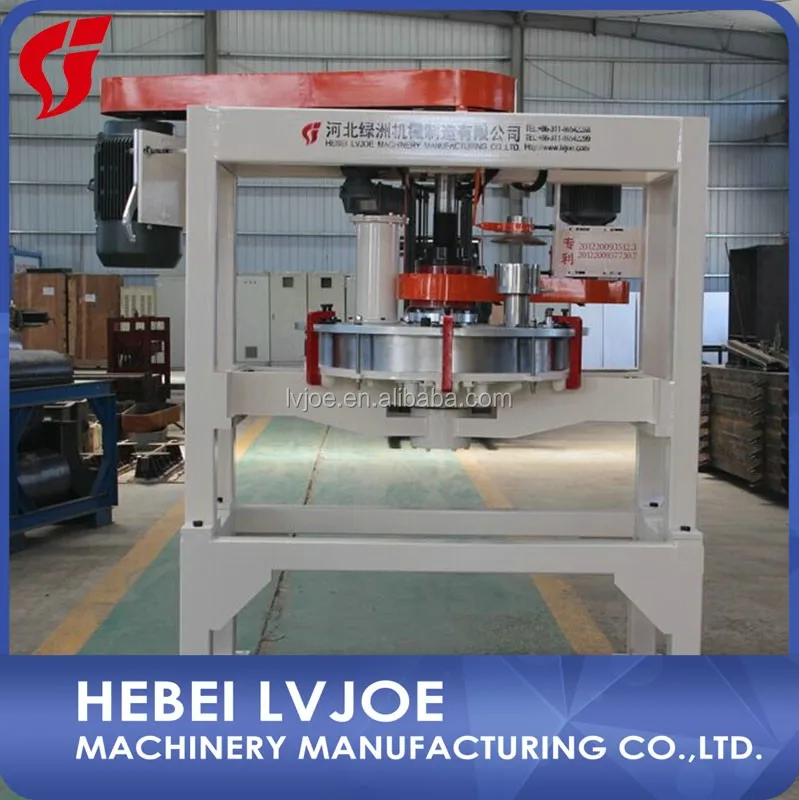

Name: Mixer
Brand: LVJOE
Features:
Our own patent;

Pin type with perfect performance;

No block for continuous 100 hours;

Gypsum board quality meets DIN18180

Most important part

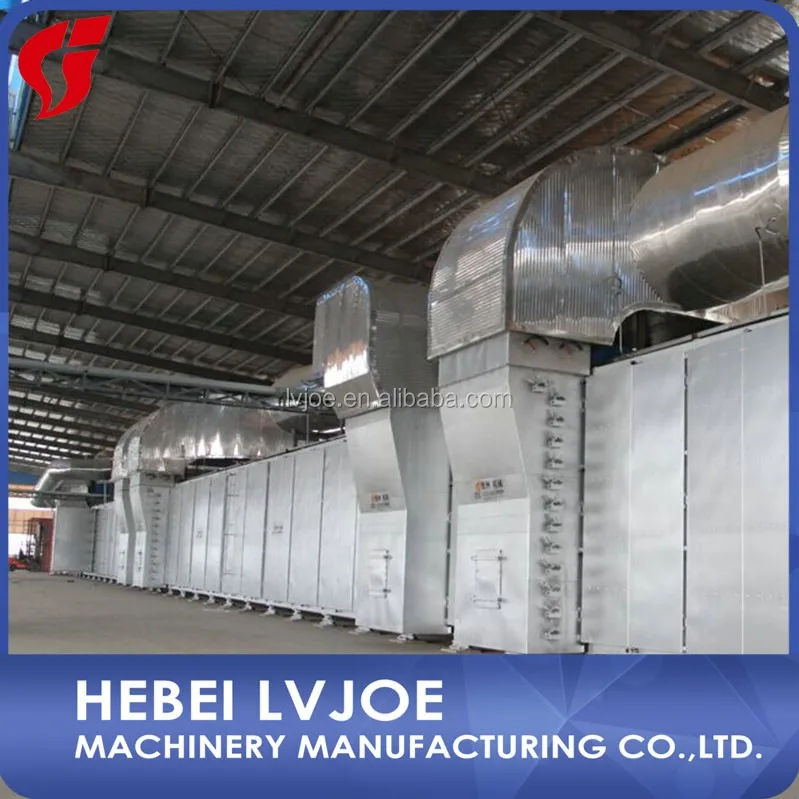

Name:  Dryer

Brand: LVJOE
Features:
Direct heat -- similar Europe technology;

Moisture & temperature sensor inside;

Special design for perfect insulating;

~750 kcal for 1 kg water

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Detailed drawing on workshop.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Regular inquiring or visiting customer.

Packing & Delivery
Packaging
Size
500 (L) * 500 (W) * 1120 (D)
Weight
0.2 T

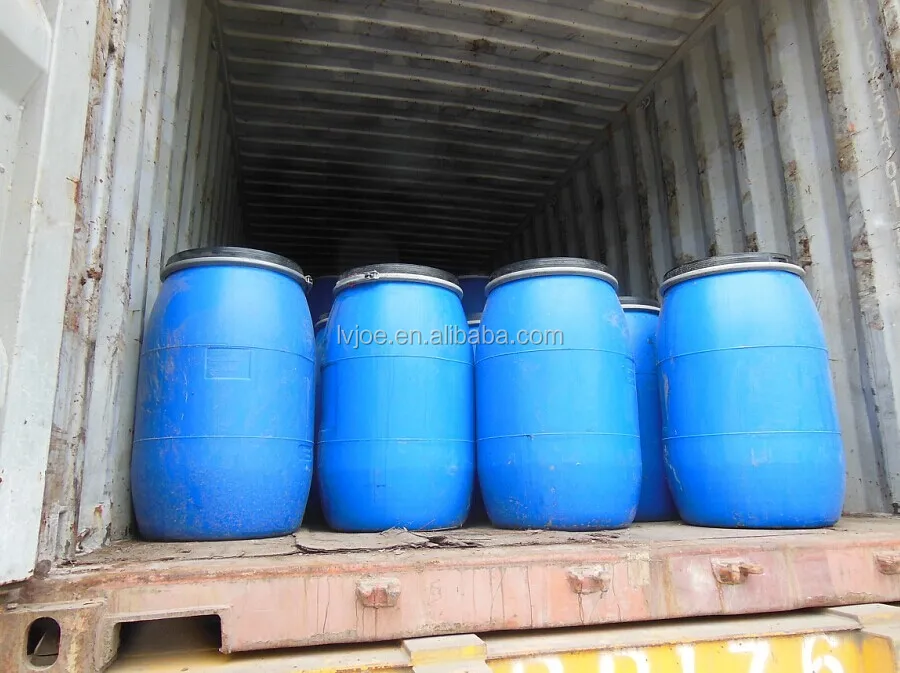

Packaging Details
This is raw materials used for commissioning.
Another raw material (modified starch) will be packaged in PE bag.
Packaging
Size
It depends
Weight
0.1 ~ 2.0 T



Packaging Details
The normal package is wooden box(Size: L*W*H). And the wooden box is  fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
This package is suitable for electrical & small size parts.
