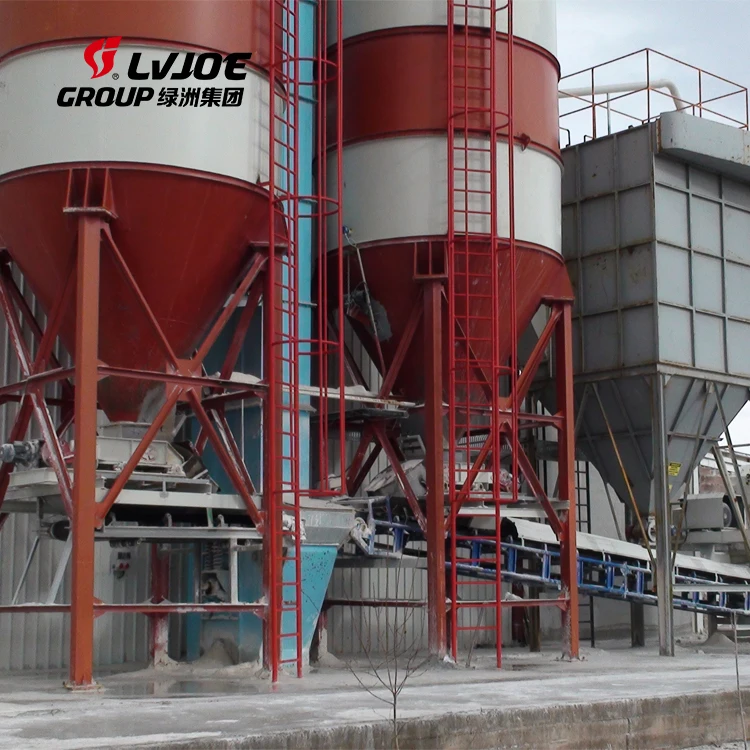

Gypsum Plate Manufacturing Automatic Plant

  • >=1 Sets
    $350,000.00
Model Number:
LVGB1001
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Home Use, Construction works
Place of Origin:
Hebei, China
Brand Name:
LVJOE
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Overseas service center available
Warranty:
1 Year
Name:
Gypsum Board Production Line
Type:
Automatic
Raw material:
steel
Application:
Roof
Certification:
ISO9001/CE
Usage:
Gypsum Board Production
color:
Blue
Advantages:
Raw Material
Capacity:
Year
Supply Ability
Supply Ability:
20 Set/Sets per Year
Packaging & Delivery
Packaging Details
uitable package for long distance transportation
wooden boxes: load electrical cabinet, small parts etc.
carton boxes: load motor, screw, bolt etc.
plastic package: rock wool
Port
TianJin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description

Gypsum Plate Manufacturing Automatic Plant





             Mainly consists of paper slurry,foaming agent,starch,water and additive etc

            All slurry has the feedback signal of level indication and chain control each batching                 process according to the process requirement

3.Forming system

  •  This part is mainly the forming of wet gypsum board
  • Can be adjusted manually

4.Conveying system

  •  This part is composed of two sets solidification belt machine and one conveying roller machine.
  • The three machines need to run synchronically.



5.Cutting system

  • Whole cut control algorithm is achieved by the separate PLC.





6.Transferring system



  • This part mainly function is gypsum board acceleration conveying,overturning,transit conveying and lifting.





7.Dryer system

  • Low heat consumption, heat preservation is good







8. Finished products converying system

  • This part mainly includes fast outlet,sizing and stacking which are all equipped double.



9.Fast outlet system

  • Can achieve the equipment failure without stopping

10.Sizing system

  •  This part consists of transverse machine,storage roller,board colse folder and sizing device.



11.Stacking system

  •  This part consists of two sealing machines,stackers.

12.Control center system

  •  Host part adopts RS VIEW as the monitoring software table to monitor the whole production process.
  • The general monitoring system displays the production process in front of operators and managers.
Packaging & Shipping



Above loading photos of gypsum board production line are for your reference:



1.

All the electrical parts will load in wooden case,and others will in nude packing or bulk etc.

2.

And all the goods will load in 40HQ,if the boiler is over weight or oversize then will load in framework or bulk freighter.

3.

And if you have any requirements about the packing,we will do it according to that.

Our Services
  • Guarantee:

     3 years (except the easy worn parts such as bearings, electric buttons).

  • Installation and debugging:

        2 to 4 months when the buyer prepare the installation and commission conditions.

  • Technology training:
FAQ



1.Why price is high?

A:Where do you think high?Which product make you feel ours is high?In the current market,there is no cheap one than us during the same level.If you want to say small workshop,indeed,their machine is cheaper,but not on the same level.



2.How much is your cost?

A:Do you have a well known about our product?If not,you can not judge fairly about our machines whether cheap or expensive.You care about price because you want have profit.Know more about our product and marketing strategies,or take a visit of our factory,you will know well about price.



3.Why your price is cheap?

A:That is our selling points and product strategies.First,we buy a large number of material,and reduce the cost.Second,we have good faith management,no bad assests,the mnagement can be maximized efficiency.And last,Our management idea is a cost-effective way,low profits,low price.If you have sincere buying our machine,we can discuss price.



4.What should do if happens quality problem?

A:No one wants problems.The reason caused by delivery,we will analyse at once,if our problems,we take responsibility,pls don’t worry,we will follow by the contract,solve problems immediately and provide good service to you.
